SPECIFICATIONS

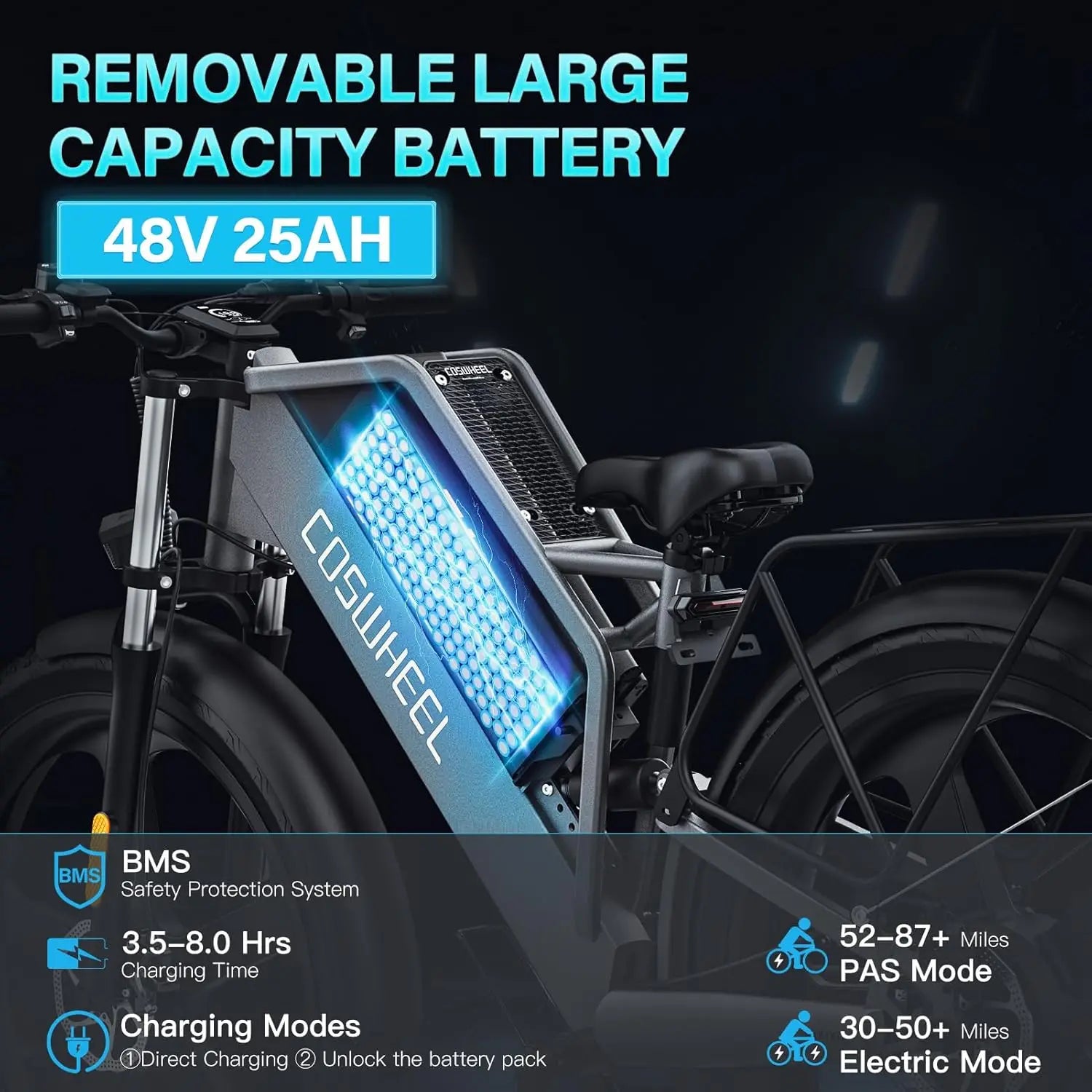

Battery: 48V 25ah (Lithium 18650 Cells)

Bike Height: 47.3" (120cm)

Bike Weight: ≥88lbs (with Battery) (≥40kg)

Brakes: Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc

Brand Name: COSWHEEL

Certification: CE

Chain: 7-speed Anti-rust, 1/2" * 3/32"

Charger: 48V3A Charger

Charging Time: 3.5-8.0 Hours

Controller: 48V 28A

Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate

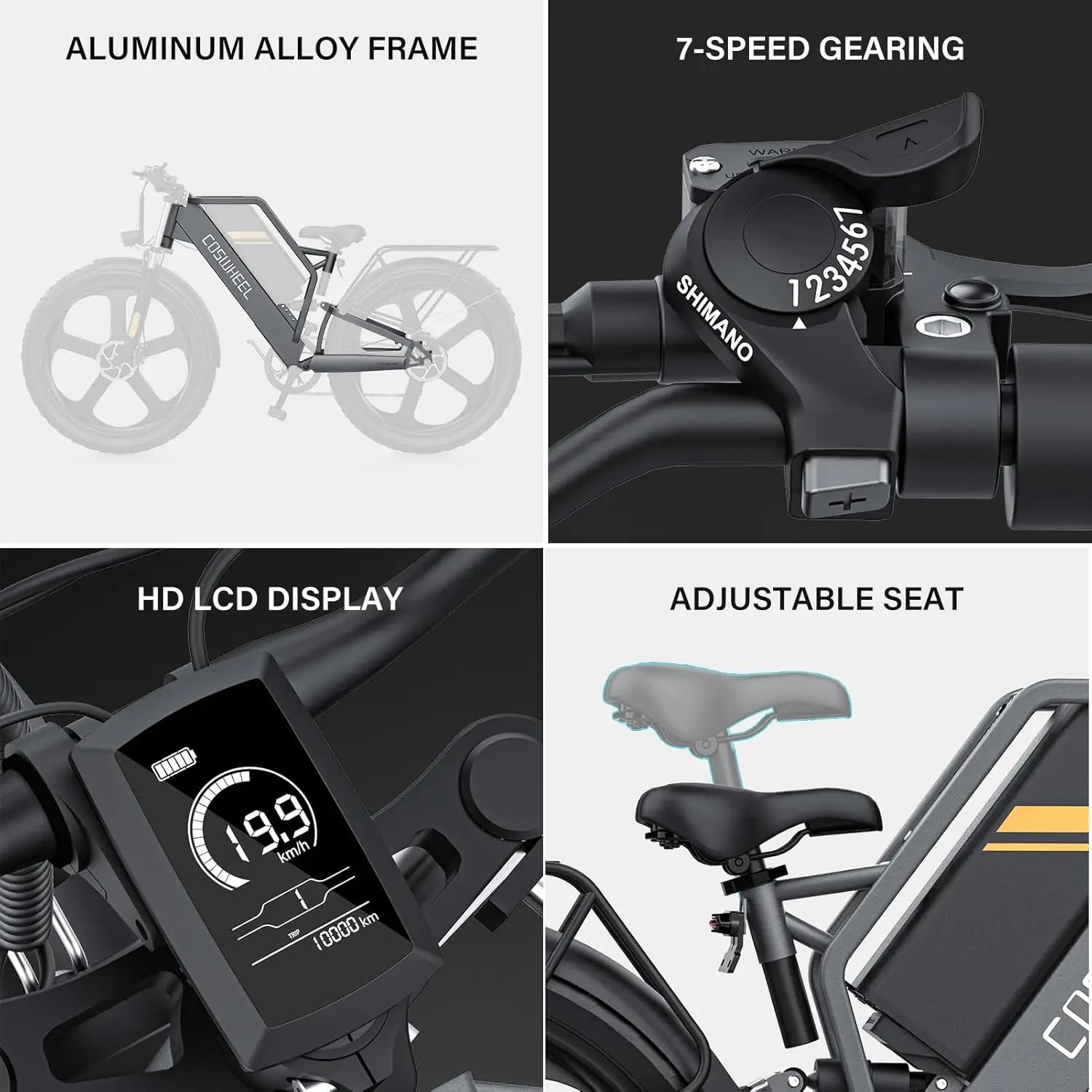

Display: Easy Read LCD Display

Folded: No

Frame: Aluminium Alloy

Frame Material: aluminum

Front Light: Classic Angel Eye Headlight, 120 LUX

Front Suspension: 26" Full Aluminum Double Shoulder Snow Suspension, 80mm Travel

Handlebar Width: 25.6" (65cm)

Hign-concerned Chemical: None

Max Speed: >50km/h

Maximum Load: 330lbs (150kg)

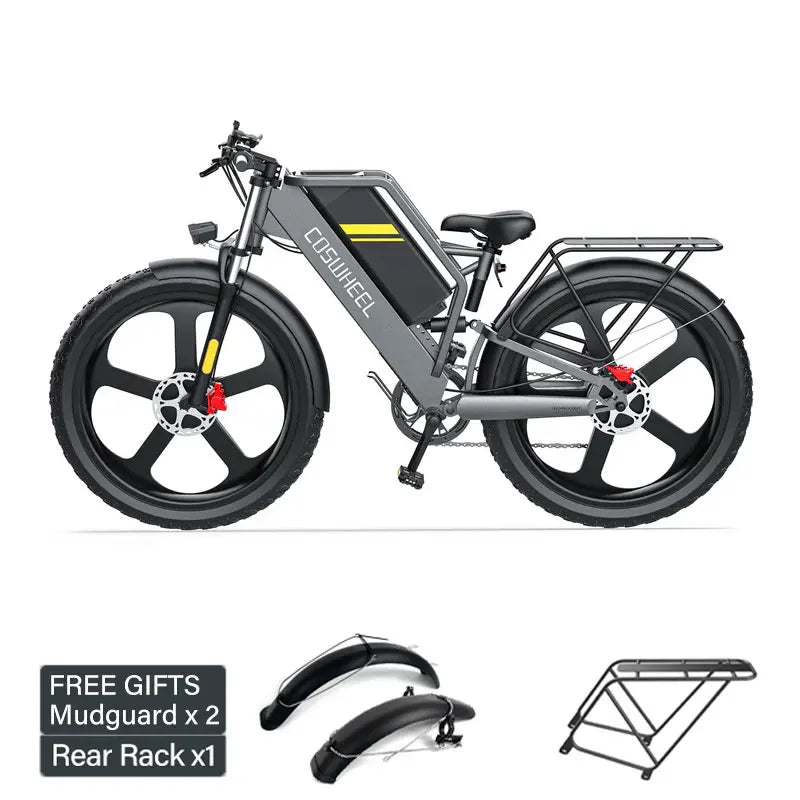

Model: COSWHEEL T26 Ebike

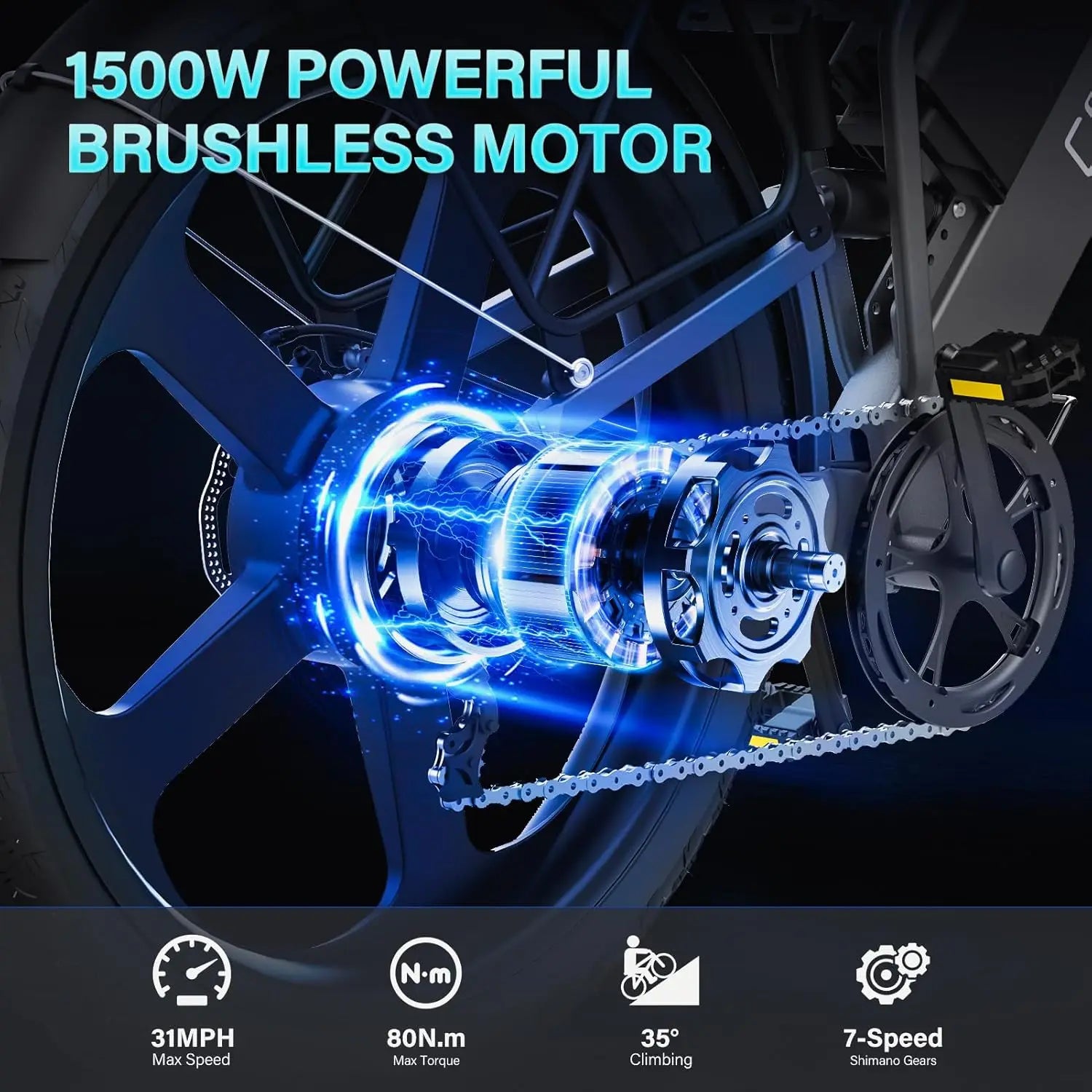

Motor: Brushless,48V 1500W Peak (Rated 1000W) Brushless Rear Hub Motor. 80N.m (48V)

Origin: Mainland China

Overall Size: 70.9" * 25.6" *47.3" (180*65*120cm)

Package Size: 65" * 13.4" * 35.4" (165*34*90cm)

Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2

Pedal Assist: 5 Levels

Power Source: lithium battery

Power Supply: lithium battery

Range: 70-87+miles (113-140km) in Class-1 PAS (pedal assist)30-50+miles (48-80km) in Class-2 throttle-only mode (pure electricity)

Range per Power: > 60 km

Rated Passenger Capacity: Two Seat

Rear Derailleur: Shimano 7-Speed

Rear Light: LED

Rear Suspension: 850 Pounds, 180mm Travel

Safe Load: 265lbs (120kg)

Seat Height: 35.4" (90cm)

Sensors: Speed Sensor

Speed: Top 55km/h

Style: Multifunctional Type

Suitable Height: 5'3" - 6'5"

Throttle: Grip Twist Throttle

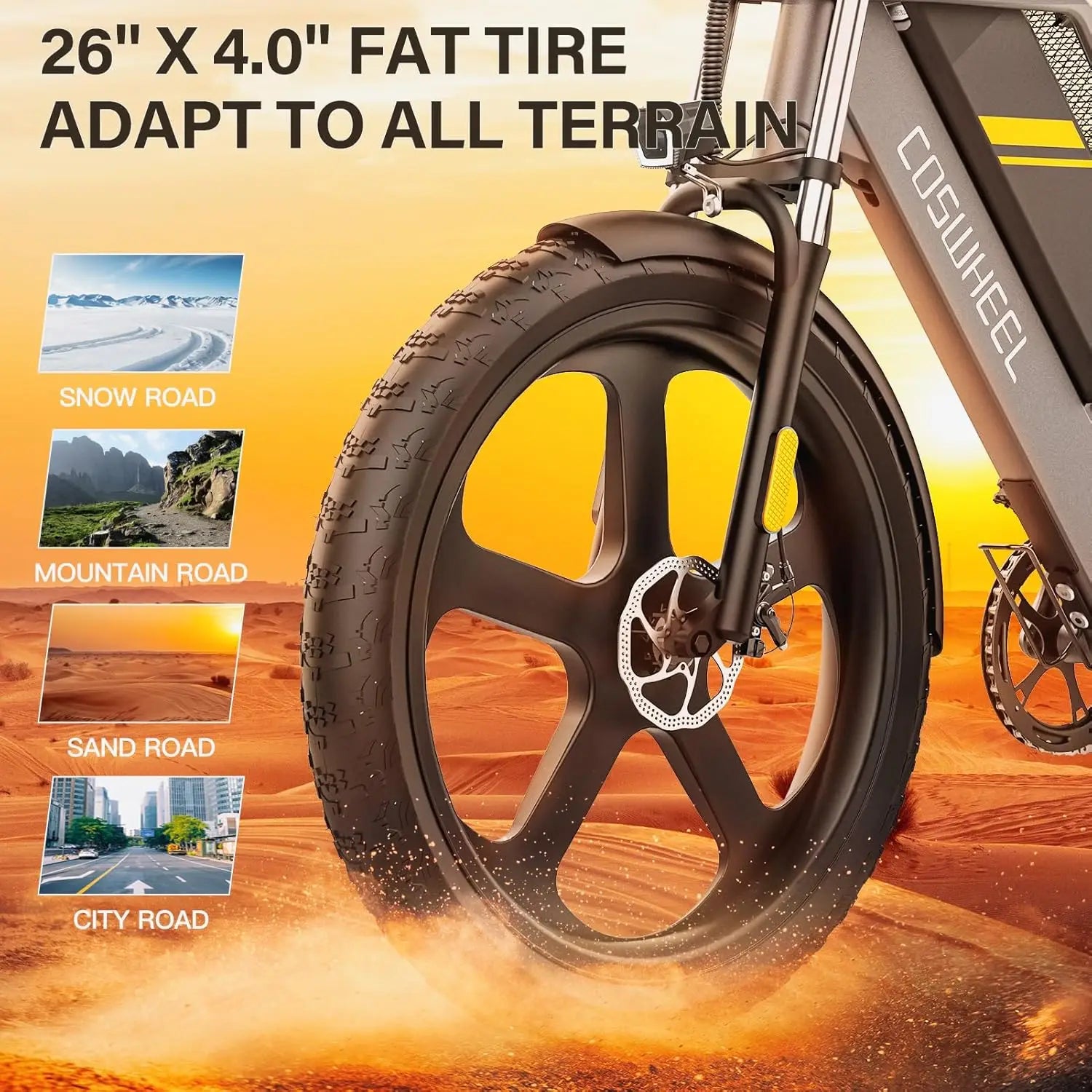

Tires: CHAOYANG Off-road Tire 26" * 4.0" H5176 30TPI with AV+ Lining Belt

Voltage: 48V

Wattage: > 500w

Wheel Size: 20“

Wheelbase: 49.2" (125cm)

style 1: electric bike

style 2: motorcycle

style 3: electric biycle

style 4: Drit bike

style 5: electric dirt bike

style 6: motorcyle electric
